Add WireGuard monitor and docs

This commit adds a manifest for deploying a WireGuard prometheus
exporter, Role and RoleBinding for kube-prometheus to monitor the Kilo
namespace and a new guide in the docs about how to monitor Kilo.

Signed-off-by: leonnicolas <leonloechner@gmx.de>

Makefile

@@ -243,6 +243,7 @@ website/docs/README.md: README.md
 	cp -r docs/graphs website/static/img/
 	sed -i 's/\.\/docs\///g' $@
 	find $(@D)  -type f -name '*.md' | xargs -I{} sed -i 's/\.\/\(.\+\.svg\)/\/img\/\1/g' {}
+	find $(@D)  -type f -name '*.md' | xargs -I{} sed -i 's/\.\/\(.\+\.png\)/\/img\/\1/g' {}
 	sed -i 's/graphs\//\/img\/graphs\//g' $@
 	# The next line is a workaround until mdx, docusaurus' markdown parser, can parse links with preceding brackets.
 	sed -i  's/\[\]\(\[.*\](.*)\)/\[\]\1/g' website/docs/api.md

docs/monitoring.md

@@ -0,0 +1,100 @@
+# Monitoring
+
+The following assumes that you have applied the [kube-prometheus](https://github.com/prometheus-operator/kube-prometheus) monitoring stack onto your cluster.
+
+## Kilo
+
+Monitor the Kilo daemon set with:
+```shell
+kubectl apply -f https://raw.githubusercontent.com/squat/kilo/main/manifests/podmonitor.yaml
+```
+
+## WireGuard
+
+Monitor the WireGuard interfaces with:
+```shell
+kubectl create ns kilo
+kubectl apply -f https://raw.githubusercontent.com/squat/kilo/main/manifests/wg-exporter.yaml
+```
+
+The manifest will deploy [Prometheus WireGuard Exporter](https://github.com/MindFlavor/prometheus_wireguard_exporter) as a daemon set and a [podmonitor](https://docs.openshift.com/container-platform/4.8/rest_api/monitoring_apis/podmonitor-monitoring-coreos-com-v1.html).
+
+By default kube-prometheus will only monitor the default, kube-system and monitoring namespaces.
+In order to allow prometheus-k8s to monitor the kilo namespace, apply the Role and RoleBinding with:
+```shell
+kubectl apply -f kubectl apply -f https://raw.githubusercontent.com/squat/kilo/main/manifests/wg-exporter-role-kube-prometheus.yaml
+```
+
+## Metrics
+
+### Kilo
+
+Kilo exports some standard metrics with the Prometheus GoCollector and ProcessCollector.
+It also exposes some Kilo specific metrics.
+
+```
+# HELP kilo_errors_total Number of errors that occurred while administering the mesh.
+# TYPE kilo_errors_total counter
+
+# HELP kilo_leader Leadership status of the node.
+# TYPE kilo_leader gauge
+
+# HELP kilo_nodes Number of nodes in the mesh.
+# TYPE kilo_nodes gauge
+
+# HELP kilo_peers Number of peers in the mesh.
+# TYPE kilo_peers gauge
+
+# HELP kilo_reconciles_total Number of reconciliation attempts.
+# TYPE kilo_reconciles_total counter
+```
+
+### WireGuard
+
+The [Prometheus WireGuard Exporter](https://github.com/MindFlavor/prometheus_wireguard_exporter) exports the following metrics:
+
+```
+# HELP wireguard_sent_bytes_total Bytes sent to the peer
+# TYPE wireguard_sent_bytes_total counter
+
+# HELP wireguard_received_bytes_total Bytes received from the peer
+# TYPE wireguard_received_bytes_total counter
+
+# HELP wireguard_latest_handshake_seconds Seconds from the last handshake
+# TYPE wireguard_latest_handshake_seconds gauge
+```
+
+## Display some Metrics
+
+If your laptop is a Kilo peer of the cluster you can navigate you browser directly to the service IP of prometheus-k8s.
+Otherwise use `port-forward`:
+```shell
+kubectl -n monitoring port-forward svc/prometheus-k8s 9090
+```
+and navigate your browser to `localhost:9090`.
+Check if you can see the podmonitor of Kilo and the WireGuard Exporter under **Status** -> **Targets** in the web frontend.
+
+If you don't see them, check the logs of the `prometheus-k8s` pods, maybe they don't have the permission to get the pods in their namespaces.
+In this case, you need to apply the Role and RoleBinding from above.
+
+Navigate to **Graph** and try to execute a simple query, eg. type `kilo_nodes` and klick execute.
+You should see some data.
+
+## Using Grafana
+
+Let't navigate to the Grafana dashboard.
+Again, if your laptop is not a Kilo peer, use `port-forward`:
+```shell
+kubectl -n monitoring port-forward svc/grafana 3000
+```
+
+Now navigate your browser to `localhost:3000`.
+The default user and password is `admin` `admin`.
+
+There is an example configuration for a dashboard [here](https://raw.githubusercontent.com/squat/kilo/main/docs/grafana/kilo.json).
+You can import this dashboard if you hit **+** -> **Import** on the Grafana dashboard.
+

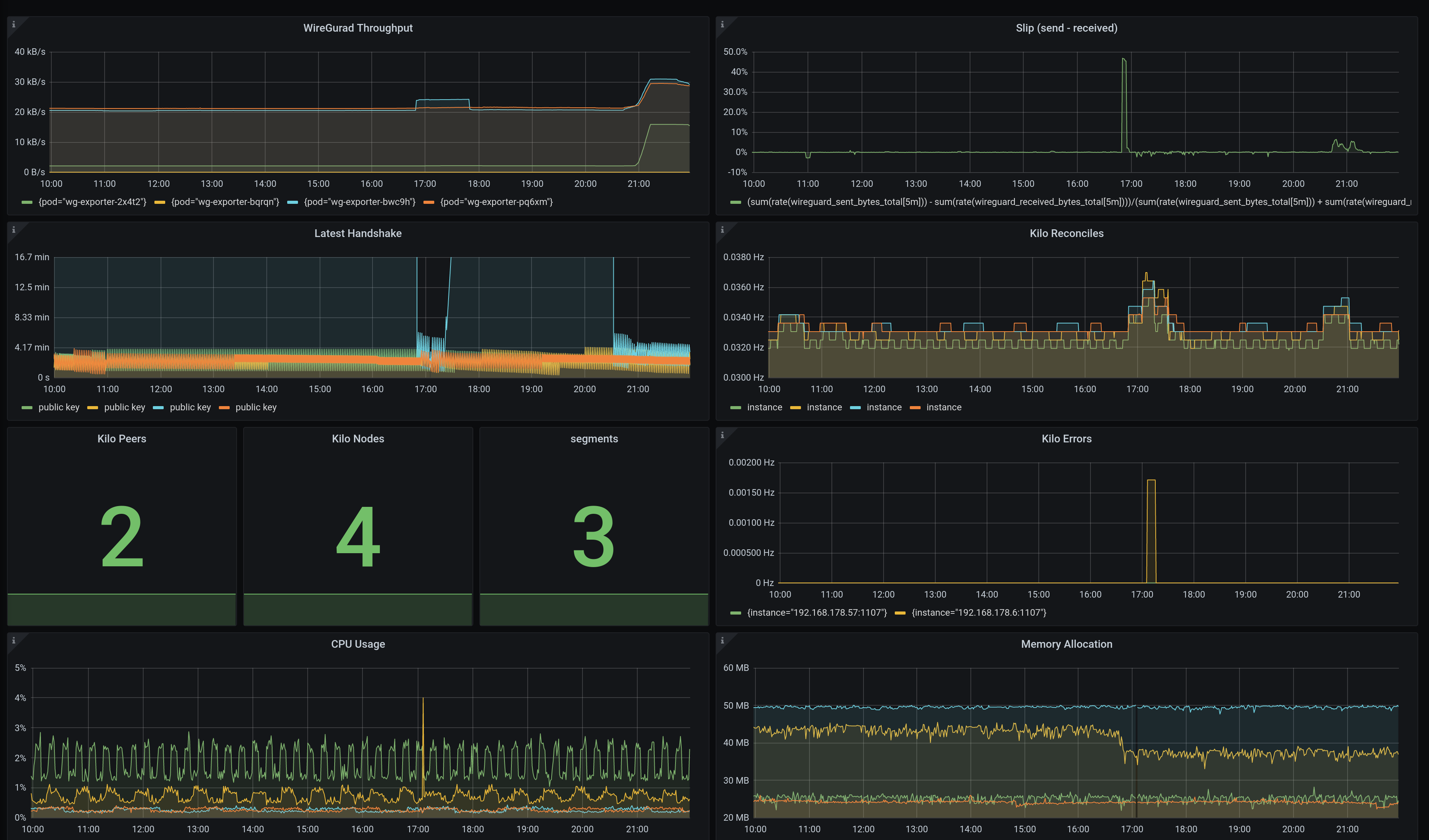

+The dashboard looks like this:
+
+<img src="./graphs/kilo.png" />
+

manifests/wg-exporter-role-kube-prometheus.yaml

@@ -0,0 +1,56 @@
+apiVersion: rbac.authorization.k8s.io/v1
+kind: Role
+metadata:
+  labels:
+    app.kubernetes.io/component: prometheus
+    app.kubernetes.io/name: prometheus
+    app.kubernetes.io/part-of: kube-prometheus
+    app.kubernetes.io/version: 2.26.0
+  name: prometheus-k8s
+  namespace: kilo
+rules:
+- apiGroups:
+  - ""
+  resources:
+  - services
+  - endpoints
+  - pods
+  verbs:
+  - get
+  - list
+  - watch
+- apiGroups:
+  - extensions
+  resources:
+  - ingresses
+  verbs:
+  - get
+  - list
+  - watch
+- apiGroups:
+  - networking.k8s.io
+  resources:
+  - ingresses
+  verbs:
+  - get
+  - list
+  - watch
+---
+apiVersion: rbac.authorization.k8s.io/v1
+kind: RoleBinding
+metadata:
+  labels:
+    app.kubernetes.io/component: prometheus
+    app.kubernetes.io/name: prometheus
+    app.kubernetes.io/part-of: kube-prometheus
+    app.kubernetes.io/version: 2.26.0
+  name: prometheus-k8s
+  namespace: kilo
+roleRef:
+  apiGroup: rbac.authorization.k8s.io
+  kind: Role
+  name: prometheus-k8s
+subjects:
+- kind: ServiceAccount
+  name: prometheus-k8s
+  namespace: monitoring

manifests/wg-exporter.yaml

@@ -0,0 +1,67 @@
+apiVersion: monitoring.coreos.com/v1
+kind: PodMonitor
+metadata:
+  labels:
+    app.kubernetes.io/name: wg-exporter
+    app.kubernetes.io/part-of: kilo
+  name: wg-exporter
+  namespace: kilo
+spec:
+  namespaceSelector:
+    matchNames:
+    - kilo
+  podMetricsEndpoints:
+  - interval: 15s
+    port: metrics
+    path: /metrics
+  selector:
+    matchLabels:
+      app.kubernetes.io/part-of: kilo
+      app.kubernetes.io/name: wg-exporter
+---
+apiVersion: apps/v1
+kind: DaemonSet
+metadata:
+  labels:
+    app.kubernetes.io/name: wg-exporter
+    app.kubernetes.io/part-of: kilo
+  name: wg-exporter
+  namespace: kilo
+spec:
+  selector:
+    matchLabels:
+      app.kubernetes.io/name: wg-exporter
+      app.kubernetes.io/part-of: kilo
+  template:
+    metadata:
+      labels:
+        app.kubernetes.io/name: wg-exporter
+        app.kubernetes.io/part-of: kilo
+    spec:
+      containers:
+      - args:
+        - -a
+        - -i=kilo0
+        - -p=9586
+        image: mindflavor/prometheus-wireguard-exporter
+        name: wg-exporter
+        ports:
+        - containerPort: 9586
+          name: metrics
+          protocol: TCP
+        securityContext:
+          privileged: true
+        terminationMessagePath: /dev/termination-log
+        terminationMessagePolicy: File
+        volumeMounts:
+        - name: wireguard
+          mountPath: /var/run/wireguard
+      volumes:
+      - name: wireguard
+        hostPath:
+          path: /var/run/wireguard
+      tolerations:
+      - effect: NoSchedule
+        operator: Exists
+      - effect: NoExecute
+        operator: Exists

website/docs/monitoring

@@ -0,0 +1,5 @@
+---
+id: monitoring
+title: Monitoring
+hide_title: true
+---

website/sidebars.js

@@ -7,7 +7,7 @@ module.exports = {
     {
       type: 'category',
       label: 'Guides',
-      items: ['topology', 'vpn', 'vpn-server', 'multi-cluster-services', 'network-policies', 'userspace-wireguard', 'peer-validation'],
+      items: ['topology', 'vpn', 'vpn-server', 'multi-cluster-services', 'network-policies', 'userspace-wireguard', 'peer-validation', 'monitoring'],
     },
     {
       type: 'category',
